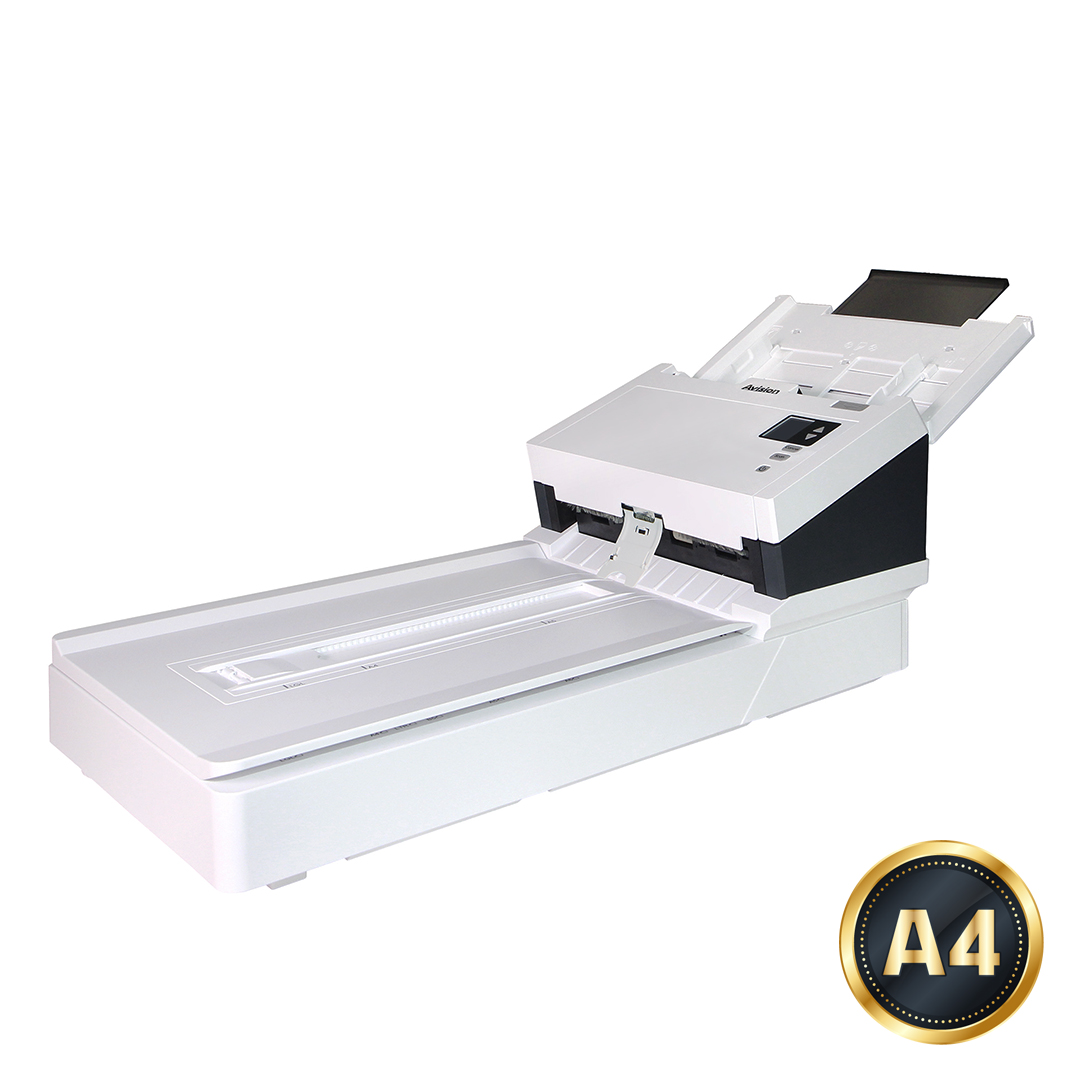

A New Generation of Document Scanner

Enhanced with innovative features, the Avision AD345GF series offers high throughput of 60 ppm and 120 ipm in a compact footprint conserving both space and budget. Unlike common sheet-fed scanners which provide only the auto document feeder and can not accommodate irregular sizes and weights of paper, the AD345GF series harmoniously combines the benefits of the fast scan rate of the ADF and the convenience of the flatbed unit to meet customer’s diverse requirements.

What is best, with Avision’s advanced image processor , the scanned image can be automatically cropped, straightened, and optimized with enhanced speed.

Product Details

Support form document up to 242 x 356 mm (9.5 x 14 in.)

The AD345GF series boasts a unique and innovative design in comparison with its predecessors – the ability to accommodate form document up to 242 x 356 mm (9.5 x 14 in.). The extended document width from standard 216 mm (8.5 in.) to 242 mm (9.5 in.) makes the AD345GF series more competitive to fit for a wider range of documents.

Reverse Roller Enhances Feeding Reliability

Designed with the innovative reverse roller for advanced paper separation capability, the AD345GF series delivers outstanding feeding reliability and operating productivity by effectively reducing the risk of a multi-feed or paper jam.

Paper Protection Technology

The advanced Paper protection technology protects valuable paper from being wrinkled or torn by halting the scan process once a skewed page is detected.

A Duplex Scanner Suited for Document and Cards

Thanks to the advanced straight paper path and image processing technology, mixed batches of documents with varies sizes and weights can be scanned, appropriately cropped, deskewed, and ready to use. Scan size accepts paper from receipts 50 x 50 mm (2 x 2 in.) to business document 242 x 356 mm (9.5 x 14 in.). The auto document feeder is also robust enough to feed paper up to 413 g/m2 (110 lbs) and embossed hard cards such as ID cards, credit cards, driver’s license, and health insurance card up to 1.25 mm thick.

Automatic multiple images cropping

In addition, the scanner comes with the convenient feature of multiple images cropping. With this feature, various sizes of documents such as photos, ID Cards, or business cards can be placed on the flatbed and the scanner is able to crop and create multiple images according to the original sizes of the documents in one single scan.

Earth-Friendly LED Technology

The AD345FGF delivers high throughput and outstanding performance. However, it is earth-friendly at the same time. The LED technology requires no warm up time and is lower power consumption without generating mercury vapor as other traditional scanners using the CCFL (cold cathode fluorescent lamp) technology.

High-Volume Daily Duty Cycle

The scanner can be used to scan up to 10,000 pages per day through the 100-page automatic document feeder. The data indicates that this scanner is designed to scan document in any application requiring frequent document and hard card scanning.

Powerful bundled software applications

The AD345GF series come with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager , AVScan , and PaperPort . With Button Manager , you can scan to searchable PDF, JPEG, BMP, or GIF file format, save to folder on your computer, and scan to e-mail, image editing application, or even a cloud application such as Google Drive, or Microsoft SharePoint with a press of a button. The AVScan and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.

Features

• Fast, 60 ppm / 120 ipm scanning in color( 200 dpi ), grayscale and monochrome (200/300 dpi)
• Fast, 45 ppm / 90 ipm scanning in color( 300 dpi )
• Auto crop and deskew a document with the advanced Avision-developed image processing unit to enhance the scanning speed
• 100-page auto document feeder (80 g/m2)
• Reverse roller technology delivers outstanding feeding reliability
• USB 3.1 Gen1 for high speed transmission
• Ultrasonic multi-feed detection
• Earth-friendly LED technology
• Easy-to-use button scanning
• Supports 236” (6000 mm, 200 dpi, color duplex ) long page scanning
• Auto power off setting

Specification

* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.
